For BMW 5 Series F10 F11 Special Car Audio Parts HK Upgrade Plug and Play High Power Speaker Tweeter Subwoofer LQ DSP Amplifier

The BMW 5 Series F10 and F11 have two original basic configurations.

Configuration 1: Originally, there were only 6 speakers distributed on four doors and under the seats.
Configuration 2: The original HiFi configuration consisted of 10 speaker combinations, distributed across four doors and under the center console and seat, with a 200W amplifier located in the trunk.

For the basic configuration, we recommend upgrading to a combination of 12 speakers and amplifiers.

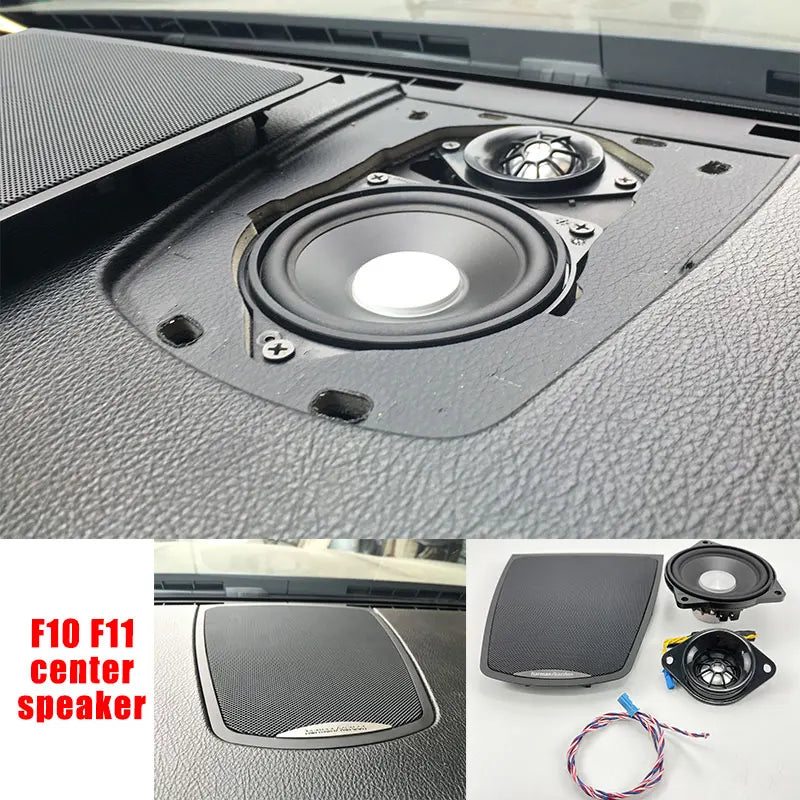

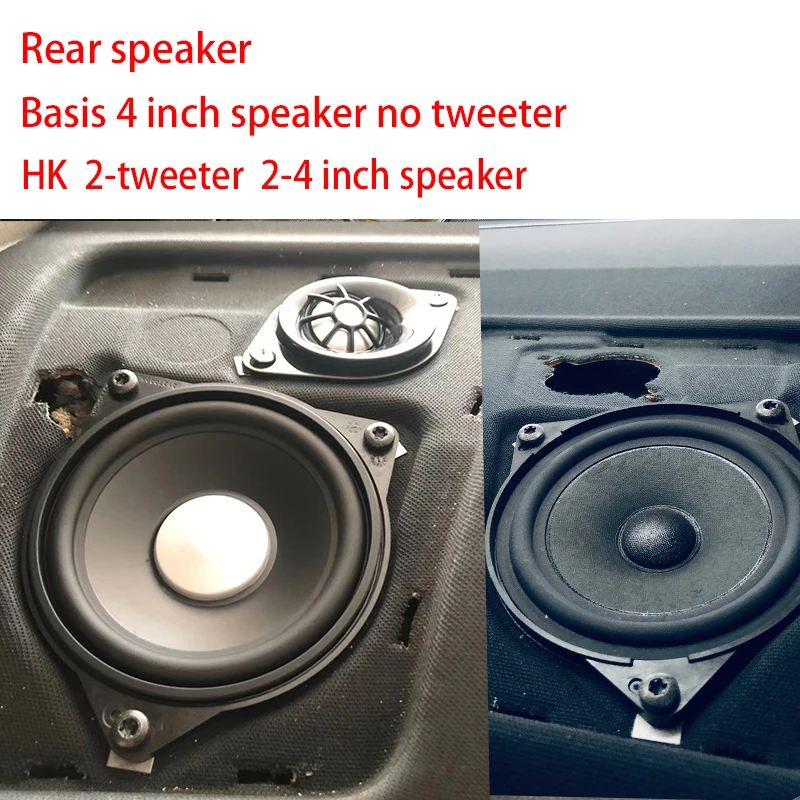

Two 4.5-inch 386 models and two 794 model tweeters are distributed in the front row; Two 4-inch and two tweeters in the back row; One 4-inch central control unit and one tweeter; Two subwoofers under the seat; Place an amplifier in the rear trunk.

4.5 inch HK-386 4 ohms 40W
4 inch HK-383 4 ohms 40W
1.5 inch HK-794 4 ohms 25W

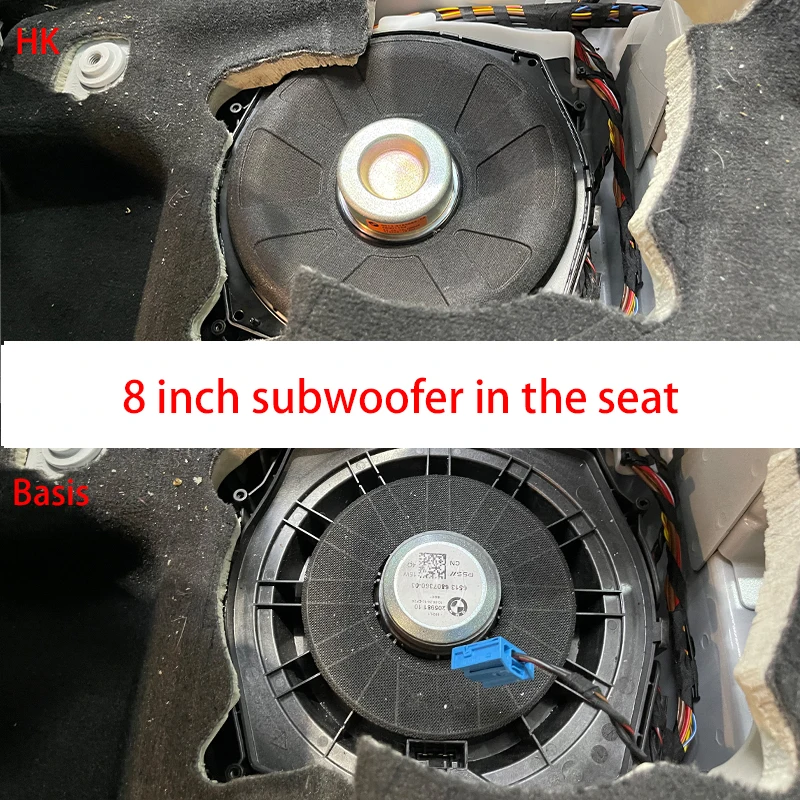

8 inch HK bass 4 ohms 100W
6.1 channel LQ DSP power amplifier 650W

All speakers and amplifiers are plug and play components. The speakers are placed in their original position to connect the plug, and the amplifiers are placed in the rear trunk to connect the original signal.

Note that Configuration One and Configuration Two require the use of different amplifier cables. If your car is equipped with one of the original six speakers, please select match basis 6; If your car is equipped with two original 10 speakers, please select match HiFi 10.

After the upgrade of this sound system, the effect is perfect. It is sufficient to handle all types of music, and the installation is simple, all plug and play.

Suitable for BMW F10 F11 2012-2017 years

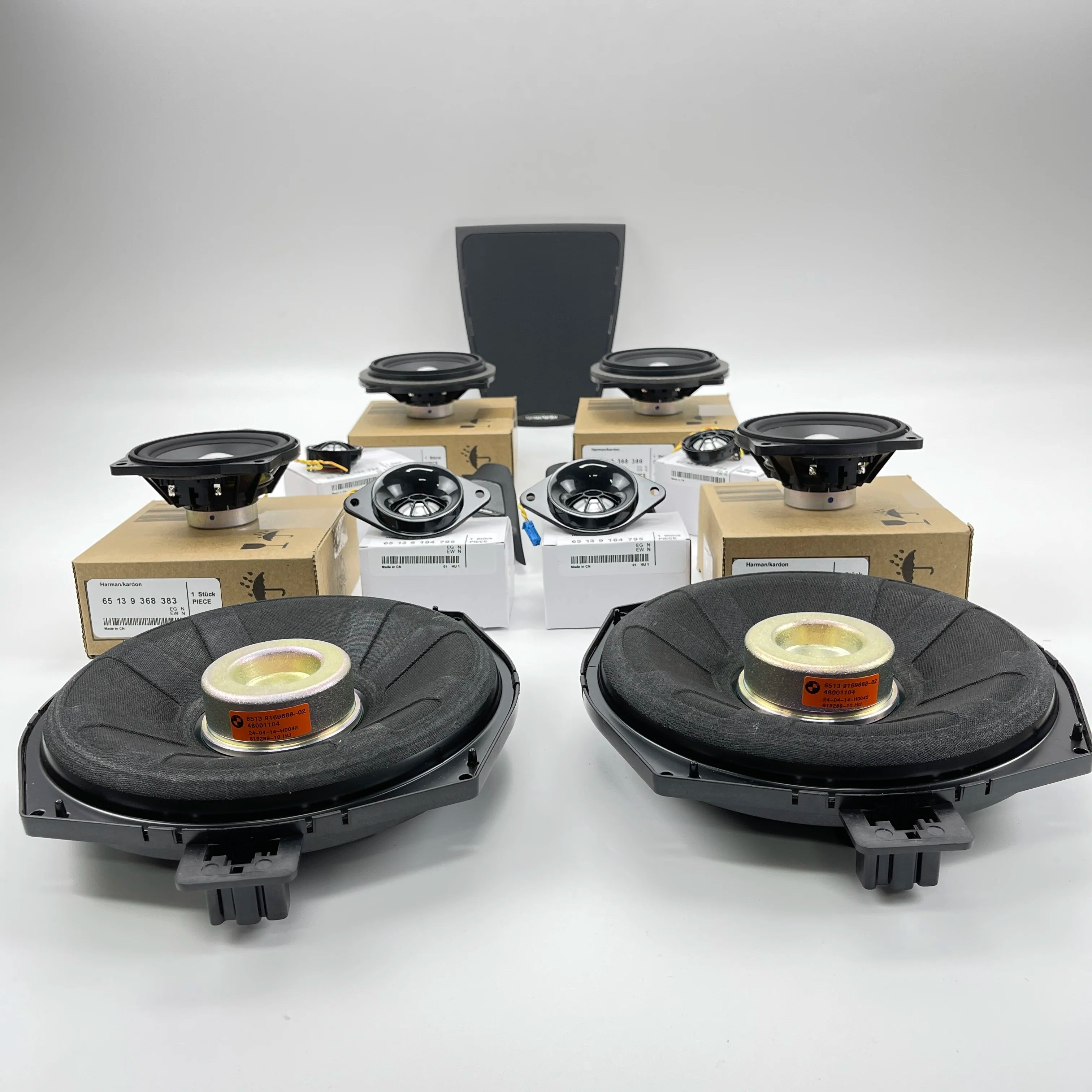

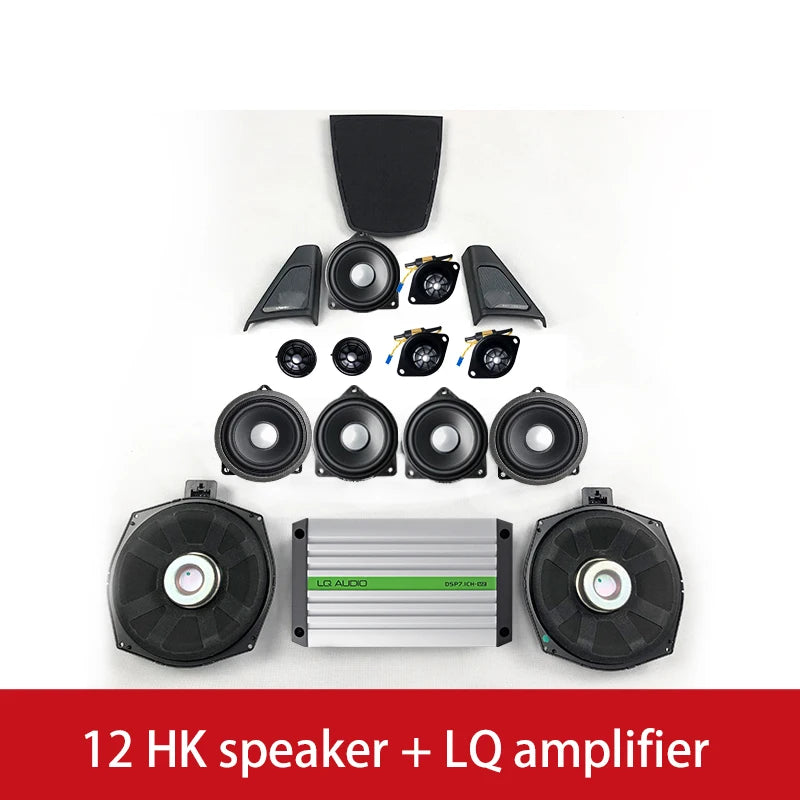

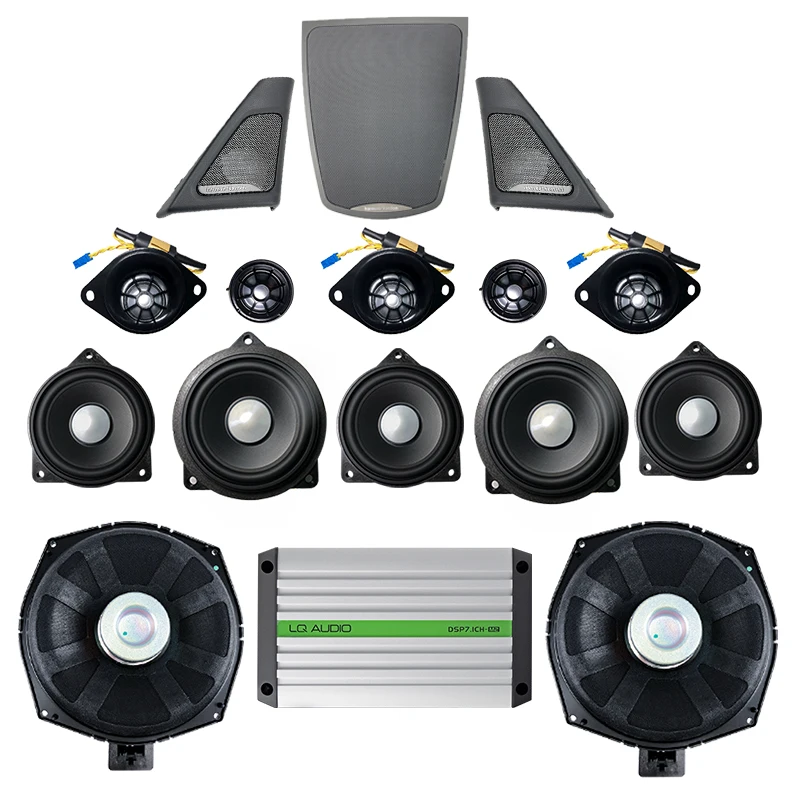

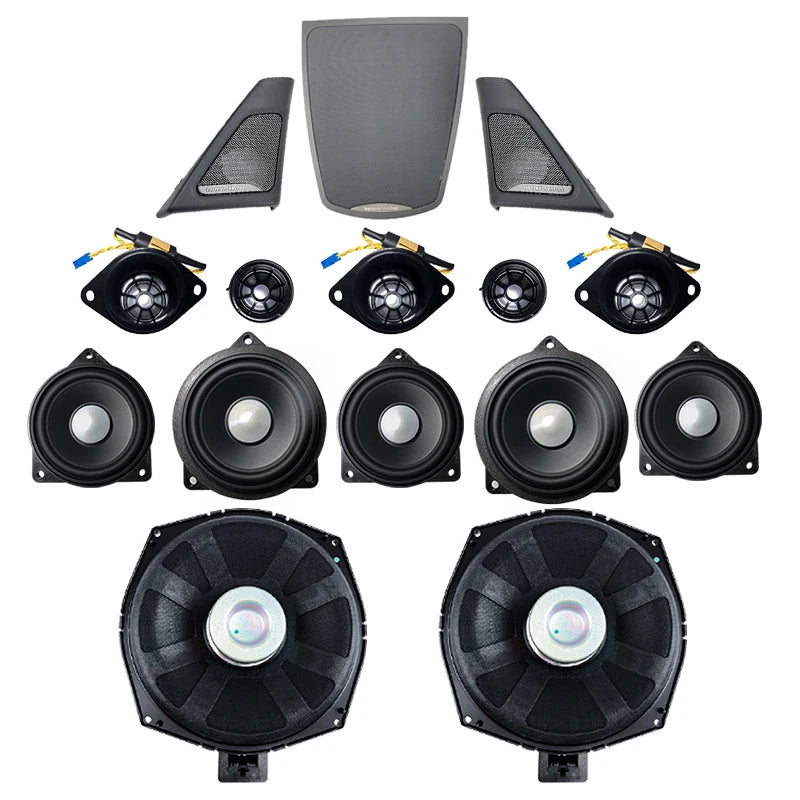

Front door (386+794), front (383+795), rear (383+795), under the seat (8-inch bass). A total of 5 tweeters, 5 mid range speakers, 2 subwoofers, and 1 amplifier.

The mobile app can intelligently import sound, and the original sound system is retained. The amplifier does not need coding, and the vehicle can work when powered on. It has a built-in protection unit, ensuring safe and efficient output.
